9124 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9124 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard Chrome Ball Thread height: 25.4mm |
| Attribute | Value |
|---|---|
| Ball Diameter (mm) | 25.4 |
| Load (kg) | 225 |

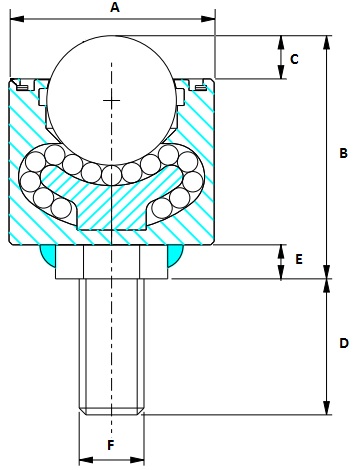

| Overall Dia - A (mm) | 44.5 |
| Part Number | 9124 |
| Body Height - B (mm) | 47.3 |
| C - See Diagram (mm) | 7.1 |
| Thread Height - D (mm) | 25.4 |
| E - See Diagram (mm) | 6 |
| Thread - F (mm) | 1/2inch UNF |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
