9123 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9123 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard Chrome Ball Thread height: 25.4mm |

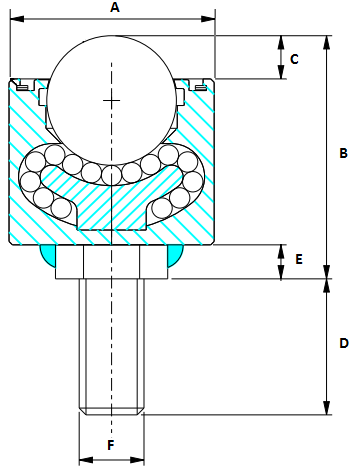

| Attribute | Value |
|---|---|
| Ball Diameter (mm) | 25.4 |
| Overall Dia - A (mm) | 44 |
| C - See Diagram (mm) | 5.6 |
| Body Height - B (mm) | 47.3 |
| Load (kg) | 225 |
| Part Number | 9123 |
| D - See Diagram (mm) | 25 |
| E - See Diagram (mm) | 6 |
| Thread - F (mm) | M12 x 1.75 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
