9102-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00
| 9102-A Stainless Steel Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Stainless steel ball (AISI 440) but other materials as standard. Thread height: 28.7mm |
| Attribute | Value |
|---|---|
| Thread Height - D (mm) | 28.7 |
| Body Height - B (mm) | 19.1 |
| Overall Dia - A (mm) | 20.6 |
| Ball Diameter (mm) | 12.7 |
| Load (kg) | 46 |
| Part Number | 9102 |

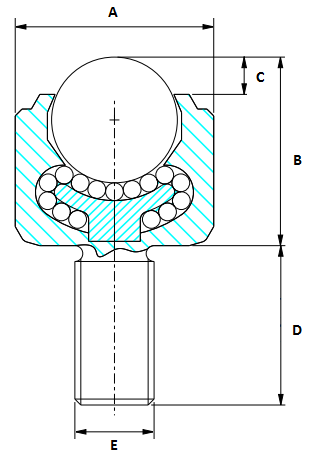

| C - See Diagram (mm) | 3.8 |
| E - See Diagram | 5/16inch UNF |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
