9100-SS Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00
| 9100-SS Stainless Steel Ball Transfer Unit High capacity range, threaded stud ball transfer unit. All parts are stainless steel - outer housing AISI 304 and internal parts & ball AISI 440. |
| Attribute | Value |
|---|---|

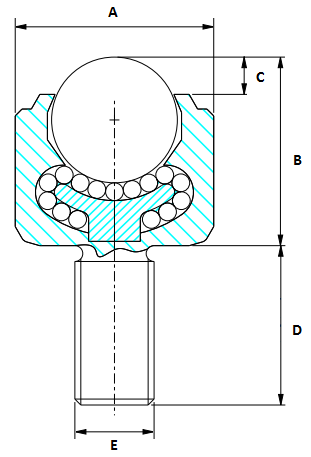

| C - See Diagram (mm) | 3.8 |
| Body Height - B (mm) | 19.1 |
| Overall Dia - A (mm) | 20 |
| Ball Diameter (mm) | 12.7 |
| Load (kg) | 46 |
| Part Number | 9100 |
| E - See Diagram (mm) | M8 x 1.25 |
| Thread Height - D (mm) | 16.1 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
