7303-BEGAP SKF Single Row Angular Contact Ball Bearing

Weight (Kg) :0.00

7303-BEGAP SKF Single Row Angular Contact Ball Bearing

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Single row angular contact ball bearings can accommodate axial loads acting in one direction only. If they are used in pairs they can have an incredible load bearing capacity. They are compact and rigid and can accomadate tilting.

  • 40° contact angle
  • Optimised internal design
  • Bearing for universal mounting (- two bearings arranged back-to-back or face-to-face will have a light preload before mounting)
  • Injection moulded window-type cage of glass fibre reinforced polyamide 6.6, ball centred

    Reference Number - 7303 BEGAP SKF

    • 7303-BEGAP SKF Single Row Angular Contact Ball Bearing

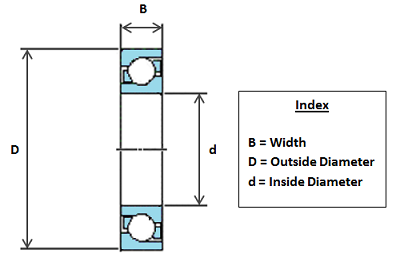

    Attribute Value
    Row Type Single
    Brand SKF
    Width 14
    Outside Dia 47
    Inside Dia 17
    Qty

    £41.38
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
