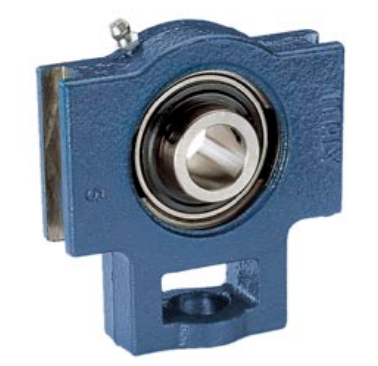

TU55TF SKF 55mm Take-up Unit with Grub Screws
Weight (Kg) :0.00
| TU55TF SKF 55mm Take-up Unit with Grub Screws Y-bearing take-up units consist of a cast housing and an insert bearing. These units are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for relubrication. Standard Y-bearing take-up units can be located on the shaft via the inner ring of the insert bearing. |

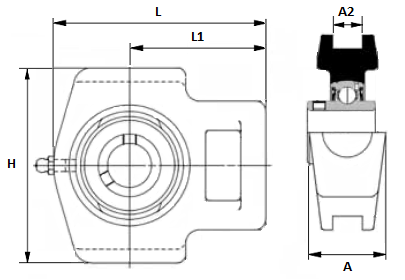

| Attribute | Value |
|---|---|
| Shaft Centre Height (L1) | 106 |
| Overall Length (L) | 171 |
| Housing Width (H) | 146 |
| Slot Width (A) | 27 |
| Bore Size (d) | 55 |
| Limiting Speed | 3600r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
