TU1.TF SKF 1inch Take-up Unit with Grub Screws
Weight (Kg) :0.00
| TU1.TF SKF 1inch Take-up Unit with Grub Screws Y-bearing take-up units consist of a cast housing and an insert bearing. These units are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for relubrication. Standard Y-bearing take-up units can be located on the shaft via the inner ring of the insert bearing. |

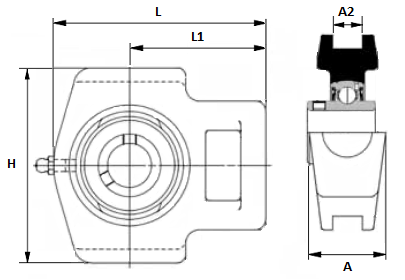

| Attribute | Value |
|---|---|
| Shaft Centre Height (L1) | 2.52inch (64nn) |
| Overall Length (L) | 3.94inch (100mm) |
| Housing Width (H) | 3.58inch (91mm) |
| Slot Width (A) | 0.53inch (13.5mm) |
| Bore Size (d) | 1inch (25.4mm) |
| Limiting Speed | 7000r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
