SYH1.1/8WF SKF 1.1/8inch Bore Plummer Block with Eccentric Locking Collar

Weight (Kg) :0.00

SKF SYH1.1/8WF 1.1/8inch Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar

Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    The SY series has two oblong holes for the attachment bolts in the base of the housing.

    • SYH1.1/8WF SKF 1.1/8inch Bore Plummer Block with Eccentric Locking Collar

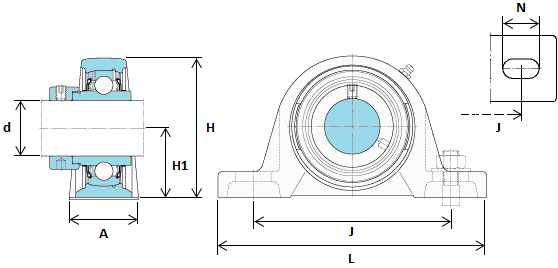

    Attribute Value
    Limiting Speed 6300r/min
    Shaft Centre Height (H1) 1.56inch (39.7mm)
    Housing Width (A) 1.57inch (40mm)
    Overall Height (H) 3.14inch (80mm)
    Housing Length (L) 5.98inch (152mm)
    Bolt Hole Centres (J) 4.63inch (117.5mm)
    Bore Size (d) 1.1/8inch (28.575mm)
    Bolt Hole Dia (N) 0.93inch (23.5mm)
    Qty

    £53.69
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
