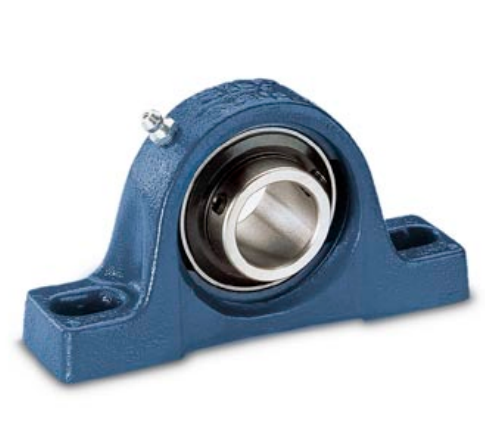

SY55WF SKF 55mm Bore Plummer Block with Eccentric Locking Collar
Weight (Kg) :0.00
| SKF SY55WF 55mm Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions: The SY series has two oblong holes for the attachment bolts in the base of the housing. |
| Attribute | Value |
|---|---|
| Limiting Speed | 3600r/min |
| Overall Height (H) | 126 |
| Housing Width (A) | 60 |
| Housing Length (L) | 219 |
| Bolt Hole Centres (J) | 171.5 |
| Shaft Centre Height (H1) | 63.5 |
| Bore Size (d) | 55 |
| Bolt Hole Dia (N) | 27.5 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
