SPB7100 Wedge Belt

Weight (Kg) :0.00

SPB7100 Wedge Belt

The Medway wrapped wedge belt is a temperature and oil resistant universal drive belt with antistatic properties that has a deeper cross section than conventional v-belts, this increase in height ensures excellent grip and greater power ratings. They have a wide range of applications in both industrial machinery and agricultural equipment that may require high belt speeds.

Construction and Features
  • The tensile member consists of a specially treated higher strength polyester cord to transmit tensile forces and withstand shock loads.
  • The fabric jacket provides grip and protection against external agents and resistance to abrasion.
  • The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member.

    Standards
    MEDWAY wrapped wedge belts conform to 1S04184, D1N7753 and BS37901 they meet 1S01813 for static conductivity and have an operating temperature range of -30°C - +60°C.

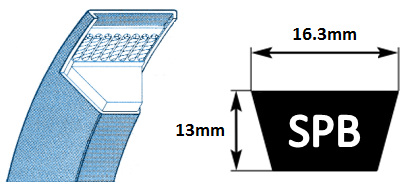

    Dimensions
  • 16.3mm top width x 13mm deep

    SPB section wedge belt

    • SPB7100 Wedge Belt

    Attribute Value
    Depth 13
    Top Width 16.3
    External Length 7122
    Internal Length 7044
    Pitch Length 7100
    Qty

    £52.47
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
