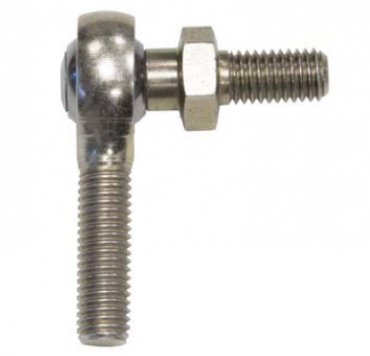

MBL-M12S 12mm Left Hand Studded Rod End Bearing

Weight (Kg) :0.00

MBL-M12S 12mm Left Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MBL-M12S 12mm Left Hand Studded Rod End Bearing

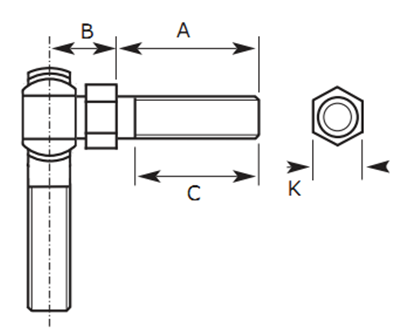

    Attribute Value
    Thread Length (C) 21
    Stud Length (A) 24
    Thread Direction Left Hand
    Thread M12x1.75
    Bore Size 12
    B 24
    K 19
    A+B 48
    Qty

    £17.81
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
