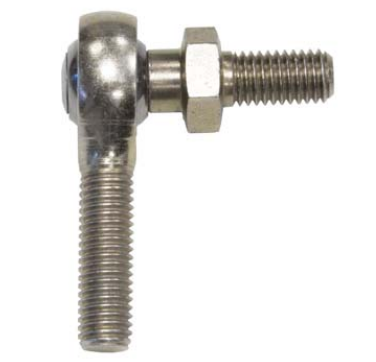

MB-M10S 10mm Right Hand Studded Rod End Bearing

Weight (Kg) :0.00

MB-M10S 10mm Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-M10S 10mm Right Hand Studded Rod End Bearing

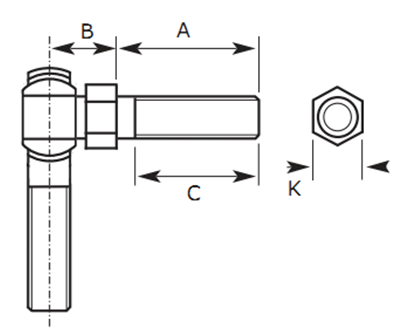

    Attribute Value
    B 20
    Thread Length (C) 18
    Stud Length (A) 20
    Thread Direction Right Hand
    Thread M10x1.50
    Bore Size 10
    K 17
    A+B 40
    Qty

    £15.73
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
