MB-10S 5/8inch Right Hand Studded Rod End Bearing

Weight (Kg) :0.00

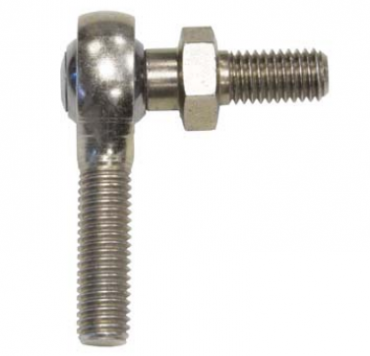

MB-10S 5/8inch Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-10S 5/8inch Right Hand Studded Rod End Bearing

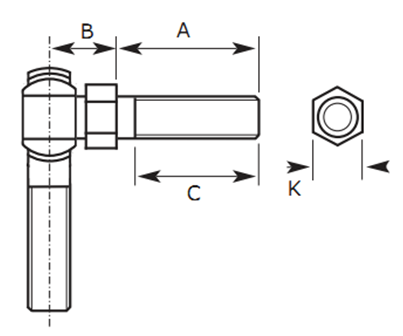

    Attribute Value
    Overall Length (A+B) 2.125
    Thread Length (C) 1.000
    Stud Length (A) 1.125
    Thread Direction Right Hand
    Thread 5/8-18 UNF
    Bore Size 5/8
    B 1.000
    K 0.750
    Qty

    £31.80
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
