LD32/3-SS Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

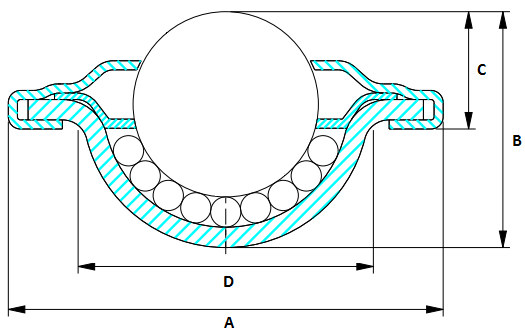

| LD32-SS Carbon Steel Housing with Stainless Steel Ball. Light duty ball transfer unit, saturn type. All parts made from Stainless Steel As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 74mm B= 36mm C= 16.2mm D= 47mm E= 58.7mm F= 3x5.5 |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 36 |
| Ball Dia (mm) | 32 |
| Max Load (kg) | 125 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
