LD23-A Stainless Steel Ball Transfer Unit (Zink Housing)
Weight (Kg) :0.00

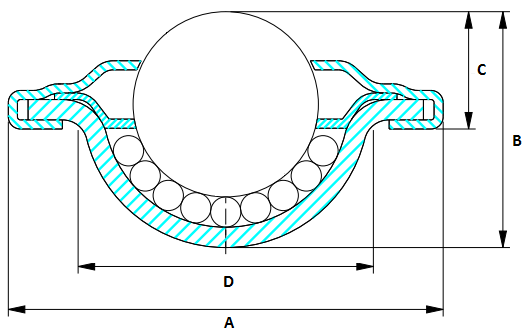

| LD23-A Stainless Steel (Zinc Plated Pressings) Ball Transfer Unit. Carbon Steel Housing with Stainless Steel Ball. Light duty ball transfer unit, saturn type. balls in Stainless Steel with zinc plated pressings. As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 45mm B= 27.7mm C= 9.8mm D= 33mm E= 39mm F= 3x3.5 |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 27.7 |
| Ball Dia (mm) | 22 |
| Max Load (kg) | 90 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
