LD16-D Acetal (Zinc Plated Pressings) Ball Transfer Unit
Weight (Kg) :0.00

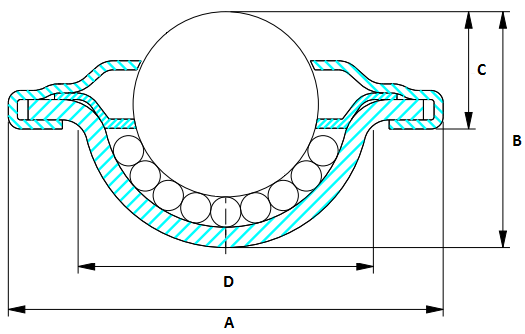

| LD16-D Acetal (Zinc Plated Pressings) Ball Transfer Unit Light duty ball transfer unit, saturn type. Main ball in Acetal (POM) with zinc plated pressings As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 41mm B= 19.3mm C= 10.8mm D= 24mm E= 30mm F= 2x3.4 |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 19.3 |
| Ball Dia (mm) | 15 |
| Max Load (kg) | 10 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
