LD16 Chrome Ball Transfer Unit
Weight (Kg) :0.00

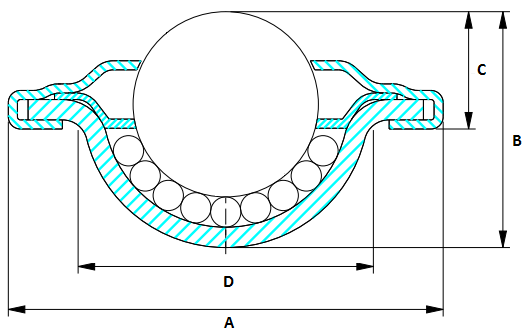

| LD16 Chrome Ball Transfer Unit Light duty ball transfer unit, saturn type. Carbon chrome balls with zinc-plated pressings As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 41mm B= 19.3mm C= 10.8mm D= 24mm E= 30mm F= 2x3.4 |
| Attribute | Value |
|---|---|
| Ball Dia (mm) | 15 |
| Max Load (kg) | 15 |
| Overall Height (mm) | 19.3 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
