FYTJ50KF SKF 1.5/8inch 2 Bolt Flange Bearing with Adapter Sleeve
Weight (Kg) :0.00
| FYTJ50KF SKF 1.5/8inch Bore Y-bearing - Cast Housing with an Oval Flange & Adapter Sleeve 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

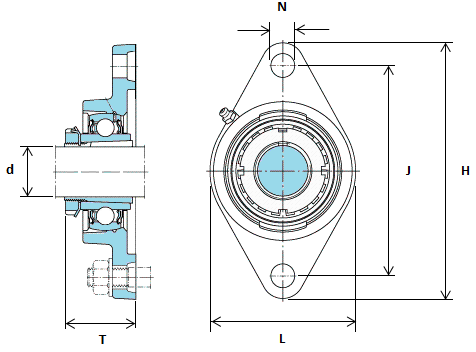

| Attribute | Value |
|---|---|
| Length (H) | 7.68inch (195mm) |
| Limiting Speed | 4000r/min |
| Overall Height with Bearing (T) | 2.07inch (52.6mm) |
| Bolt Hole Dia (N) | 0.75inch (19mm) |
| Width (L) | 4.53inch (115mm) |
| Bolt Hole Centres (J) | 6.18inch (157mm) |
| Bore Size (d) | 1.5/8inch (41.275mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
