FYTJ35KF SKF 1.3/16inch 2 Bolt Flange Bearing with Adapter Sleeve

Weight (Kg) :0.00

FYTJ35KF SKF 1.3/16inch Bore Y-bearing - Cast Housing with an Oval Flange & Adapter Sleeve

2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    • FYTJ35KF SKF 1.3/16inch 2 Bolt Flange Bearing with Adapter Sleeve

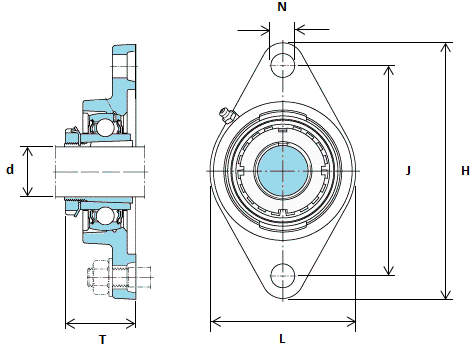

    Attribute Value
    Limiting Speed 5300r/min
    Length (H) 6.34inch (161mm)
    Overall Height with Bearing (T) 1.70inch (43.3mm)
    Bolt Hole Dia (N) 0.63inch (16mm)
    Width (L) 3.78inch (96mm)
    Bolt Hole Centres (J) 5.12inch (130mm)
    Bore Size (d) 1.3/16inch (30.163mm)
    Qty

    £51.27
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
