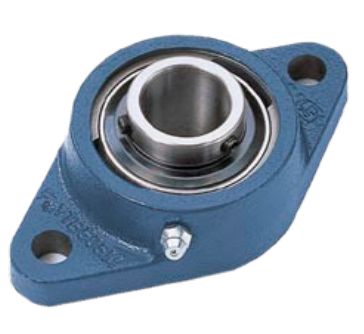

FYTB3/4TF SKF 3/4inch 2 Bolt Flange Bearing & Grub Screws
Weight (Kg) :0.00
| FYTB3/4TF SKF 3/4inch Bore Y-bearing - Cast Housing with an Oval Flange & Grub Screws 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

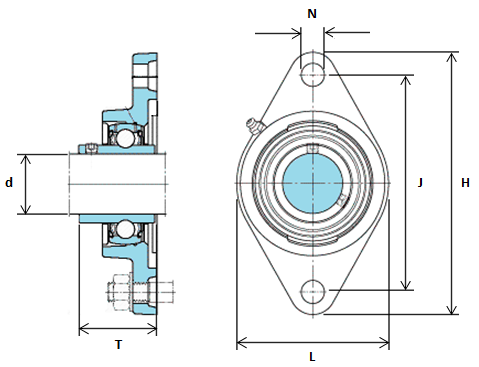

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 1.47inch (37.3mm) |
| Bolt Hole Dia (N) | 0.45inch (11.5mm) |
| Width (L) | 2.38inch (60.5mm) |
| Bolt Hole Centres (J) | 3.54inch (90mm) |
| Bore Size (d) | 3/4inch (19.05mm) |
| Limiting Speed | 8500r/min |
| Length (H) | 4.41inch (112mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
