FYTB1.1/4TF SKF 1.1/4inch 2 Bolt Flange Bearing & Grub Screws
Weight (Kg) :0.00
| FYTB1.1/4TF SKF 1.1/4inch Bore Y-bearing - Cast Housing with an Oval Flange & Grub Screws 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

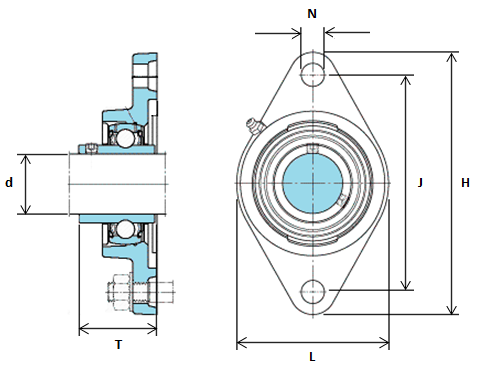

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 1.83inch (46.4mm) |
| Bolt Hole Dia (N) | 0.55inch (14mm) |
| Width (L) | 3.78inch (96mm) |
| Bolt Hole Centres (J) | 5.12inch (130mm) |
| Bore Size (d) | 1.1/4inch (31.75mm) |
| Length (H) | 6.14inch (156mm) |
| Limiting Speed | 5300r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
