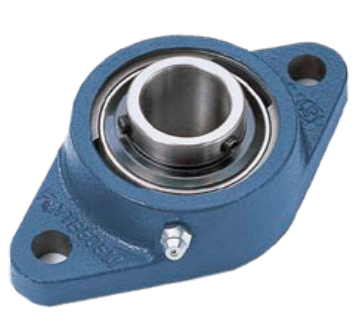

FYT5/8FM SKF 5/8inch 2 Bolt Flange Bearing with Eccentric Locking Collar
Weight (Kg) :0.00
| FYT5/8FM SKF 5/8inch Bore Y-bearing - Cast Housing with an Oval Flange & Eccentric Locking Collar 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

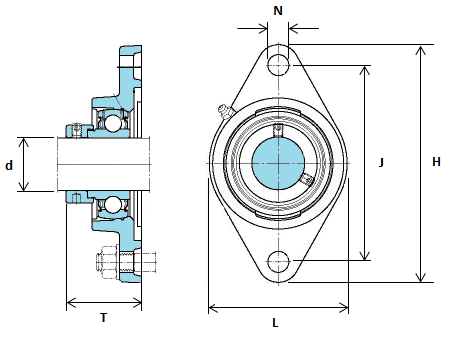

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 1.45inch (36.8mm) |
| Bolt Hole Dia (N) | 0.44inch (11.1mm) |
| Width (L) | 2.13inch (54mm) |
| Bolt Hole Centres (J) | 3.00inch (76.2mm) |
| Bore Size (d) | 5/8inch (15.875mm) |
| Limiting Speed | 9500r/min |
| Length (H) | 3.88inch (98.5mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
