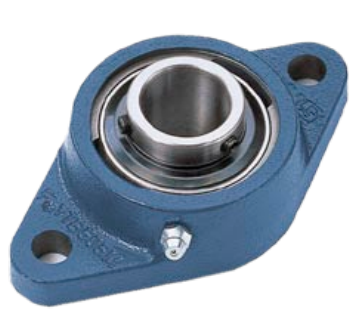

FYT1.15/16FM SKF 1.15/16inch 2 Bolt Flange Bearing with Eccentric Locking Collar
Weight (Kg) :0.00
| FYT1.15/16FM SKF 1.15/16inch Bore Y-bearing - Cast Housing with an Oval Flange & Eccentric Locking Collar 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

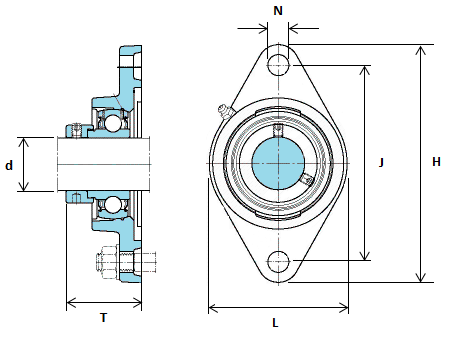

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 2.39inch (60.7mm) |
| Bolt Hole Dia (N) | 0.63inch (16mm) |
| Width (L) | 4.57inch (116mm) |
| Bolt Hole Centres (J) | 6.19inch (157.2mm) |
| Bore Size (d) | 1.15/16inch (49.213mm) |
| Length (H) | 7.44inch (189mm) |
| Limiting Speed | 4000r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
