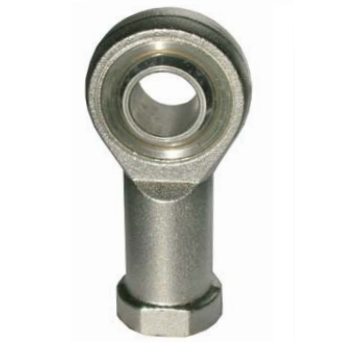

FSL-M10 10mm Left Hand Rod End Bearing

Weight (Kg) :0.00

FSL-M10 10mm Left Hand Rod End Bearing

FS - Series is our 3 piece steel on steel range of general purpose female rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction, they do not require maintenance.

Materials
  • Housing: Forged steel 080M46 zinc plated white & blue passivate (silver/clear) & forged stainless steel 304C
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing steel 100Cr6, case hardened & electra-less nickel plated & stainless steel 440C
  • Stud: Steel 230M07PB zinc plated white & blue passivate (silver/clear) & stainless steel 303C

    Features
  • Low friction
  • High shock loads
  • Extended wear life
  • No maintenance
  • Studded option

    Temperature Range
  • -53°C to +121°C

    Possible Applications
  • Medium/heavy industrial/mechanical applications
  • Construction Equipment
  • Agricultural Equipment
  • Recreational vehicles
  • High precision motion control

    Specification
  • ELV & RoHS compliant

    • FSL-M10 10mm Left Hand Rod End Bearing

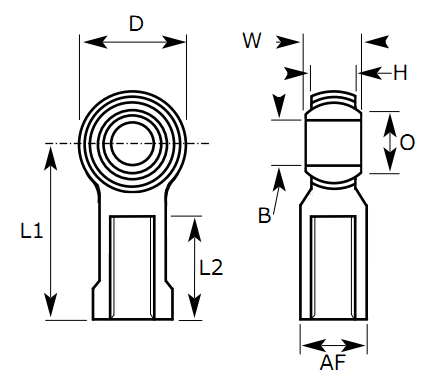

    Attribute Value
    Ball Width (W) 14
    Housing Depth (H) 10.5
    Housing Dia (D) 28
    Thread Direction Left
    Length of Thread (L2) 15
    Shaft Centre Height (L1) 43
    Thread M10x1.50
    Bore Size 10
    AF 17
    Qty

    £13.76
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
