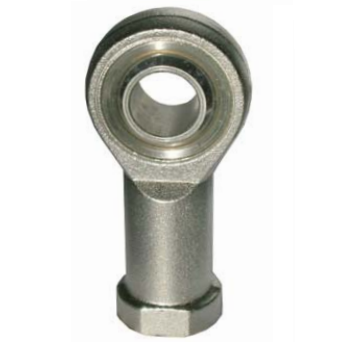

FS-M05 5mm Right Hand Rod End Bearing

Weight (Kg) :0.00

FS-M05 5mm Right Hand Rod End Bearing

FS - Series is our 3 piece steel on steel range of general purpose female rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction, they do not require maintenance.

Materials
  • Housing: Forged steel 080M46 zinc plated white & blue passivate (silver/clear) & forged stainless steel 304C
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing steel 100Cr6, case hardened & electra-less nickel plated & stainless steel 440C
  • Stud: Steel 230M07PB zinc plated white & blue passivate (silver/clear) & stainless steel 303C

    Features
  • Low friction
  • High shock loads
  • Extended wear life
  • No maintenance
  • Studded option

    Temperature Range
  • -53°C to +121°C

    Possible Applications
  • Medium/heavy industrial/mechanical applications
  • Construction Equipment
  • Agricultural Equipment
  • Recreational vehicles
  • High precision motion control

    Specification
  • ELV & RoHS compliant

    • FS-M05 5mm Right Hand Rod End Bearing

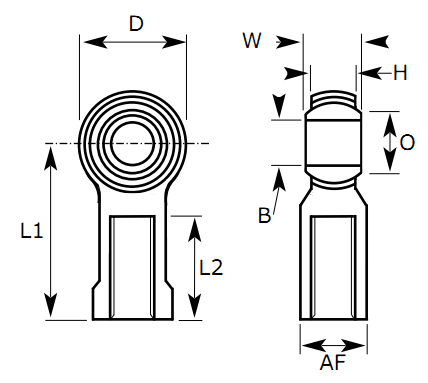

    Attribute Value
    Housing Depth (H) 6
    Ball Width (W) 8
    Thread Direction Right
    Length of Thread (L2) 8
    Shaft Centre Height (L1) 27
    Thread M5x0.80
    Bore Size 5
    Housing Dia (D) 18
    AF 9
    Qty

    £10.01
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
