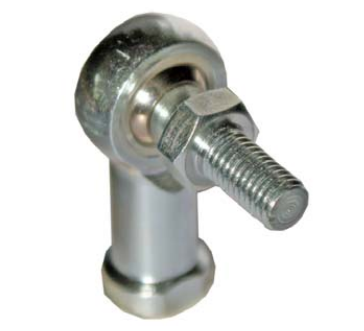

FPL-M10S 10mm Studded Left Hand Rod End Bearing

Weight (Kg) :0.00

FPL-M10S 10mm Studded Left Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: GR-Nylon
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FPL-M10S 10mm Studded Left Hand Rod End Bearing

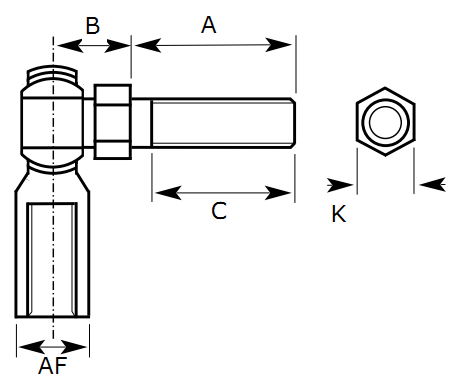

    Attribute Value
    K 17
    Thread Length (C) 18
    Stud Length (A) 20
    Thread Direction Left Hand
    Thread M10x1.50
    Bore Size 10
    B 20
    A+B 40
    AF 17
    Qty

    £9.95
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
