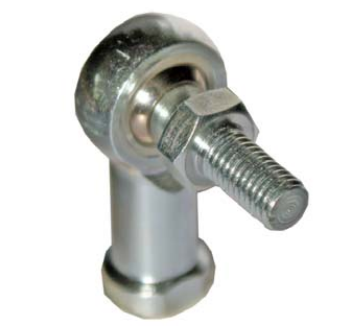

FPL-04S 1/4inch Studded Left Hand Rod End Bearing

Weight (Kg) :0.00

FPL-04S 1/4inch Studded Left Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: GR-Nylon
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FPL-04S 1/4inch Studded Left Hand Rod End Bearing

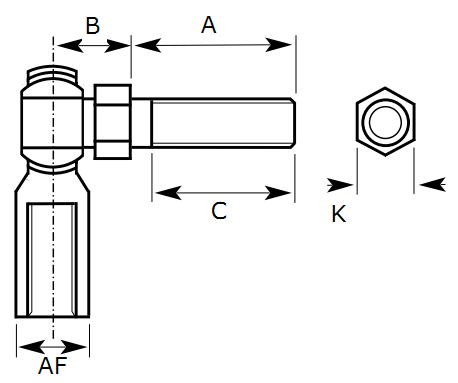

    Attribute Value
    B 0.485
    K 0.375
    Thread Length (C) 0.500
    Stud Length (A) 0.562
    Thread Direction Left Hand
    Thread 1/4-28 UNF
    Bore Size 1/4
    A+B 1.047
    AF 0.375
    Qty

    £10.76
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
