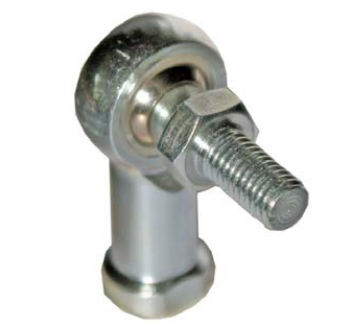

FPL-03S 3/16inch Studded Left Hand Rod End Bearing

Weight (Kg) :0.00

FPL-03S 3/16inch Studded Left Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: GR-Nylon
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FPL-03S 3/16inch Studded Left Hand Rod End Bearing

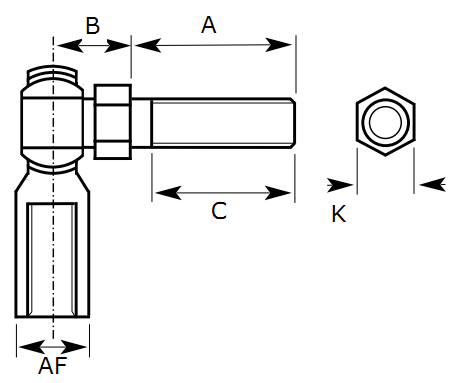

    Attribute Value
    B 0.516
    K 0.312
    Thread Length (C) 0.437
    Stud Length (A) 0.500
    Thread Direction Left Hand
    Thread 10-32 UNF
    Bore Size 3/16
    A+B 1.016
    AF 0.312
    Qty

    £10.76
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
