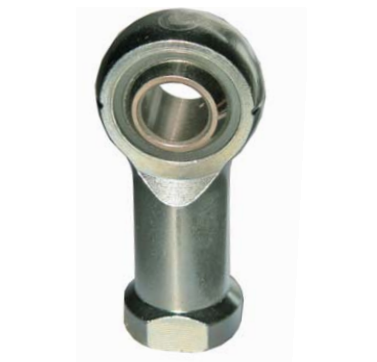

FP-03 3/16inch Right Hand Rod End Bearing

Weight (Kg) :0.00

FP-03 3/16inch Right Hand Rod End Bearing

FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Low carbon steel 230M07PB, Zinc plated white & colour passive
  • Race: GR-Nylon, LV-3H.
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plate.

    Specification
  • ELV & R0HS Compliant.

    • FP-03 3/16inch Right Hand Rod End Bearing

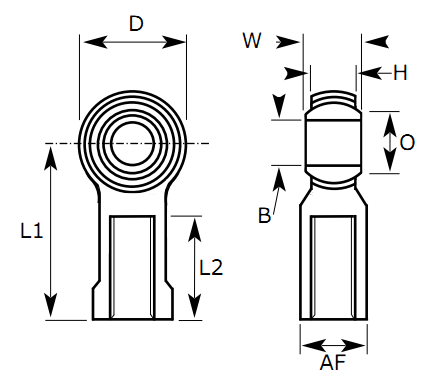

    Attribute Value
    Ball Width (W) 0.312
    Housing Depth (H) 0.250
    Thread Direction Right Hand
    Length of Thread (L2) 0.562
    Shaft Centre Height (L1) 1.062
    Thread 10-32 UNF
    Bore Size 3/16
    Housing Dia (D) 0.625
    AF 0.312
    Qty

    £5.93
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
