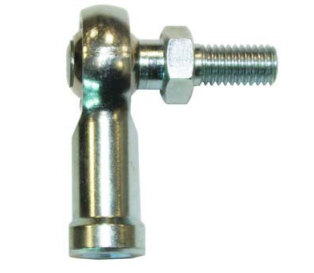

FB-M08S 8mm Studded Right Hand Rod End Bearing

Weight (Kg) :0.00

FP-M08S 8mm Studded Right Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FB-M08S 8mm Studded Right Hand Rod End Bearing

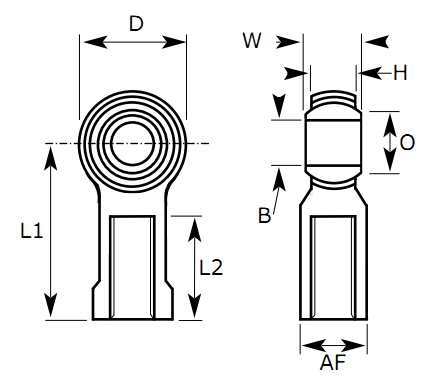

    Attribute Value
    A+B 32
    B 16
    Thread Length (C) 14
    Stud Length (A) 16
    Thread Direction Right Hand
    Thread M8x1.25
    Bore Size 8
    K 13
    AF 14
    Qty

    £10.98
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
