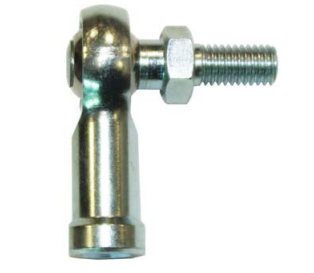

FB-05S 5/16inch Studded Right Hand Rod End Bearing

Weight (Kg) :0.00

FB-05S 5/16inch Studded Right Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FB-05S 5/16inch Studded Right Hand Rod End Bearing

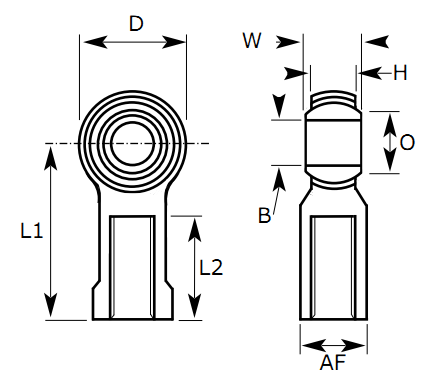

    Attribute Value
    B 0.547
    K 0.437
    Thread Length (C) 0.594
    Stud Length (A) 0.687
    Thread Direction Right Hand
    Thread 5/16-24 UNF
    Bore Size 5/16
    A+B 1.234
    AF 0.437
    Qty

    £27.01
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
