450H150 Timing Belt

Weight (Kg) :0.00

450H150 Timing Belt

The Medway classical timing belt (synchronous) has a trapezoidal tooth profile providing a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. It has a wide range of applications from typewriters to heavy industrial machinery.

Construction and Features
  • The glass fibre tensile member provides high strength to transmit tensile forces and withstand shock loads with
    virtually no stretch.
  • The abrasive resistant cover protects the teeth when in contact with the pulley and helps to reduce noise.
  • The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive
    drive.

    Standards
  • Conform to 1S05296, they meet 1S01813 for static conductivity and have an operating temperature range of -25°C - +100°C.

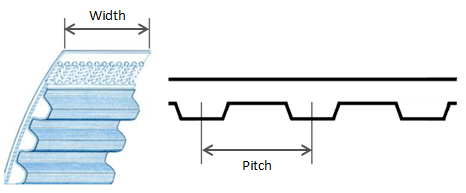

    H Section timing belt - 1/2inch pitch (12.7mm)

    • 450H150 Timing Belt

    Attribute Value
    Length (mm) 1143
    Brand Medway
    Width (inch) 1.5
    Number of Teeth 90
    Length (inch) 45
    Qty

    £25.00
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
